$5 Hard Ukulele DIY case

16

February 14, 2011 by Tim


Up front, I lied a little…The case is $5 and you could leave it as is and not spend any money, but it is hard not to look at this and just make it awesome.

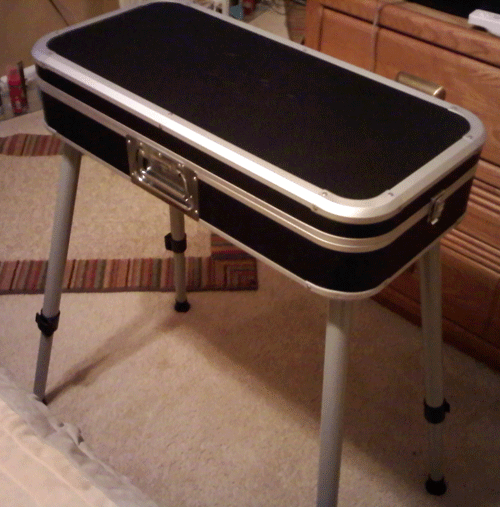

Case with legs installed

I was walking around the Beast (What we nerds call Best Buy) and I saw that the DJ Hero cases were $5, and I looked at it for a good 5 minutes and wondered if a uke would fit in it? And by chance it is a perfect size for a concert ukulele (25″ x 12″ x 5.5″) , except that to make one fit I had to modify it a little, the bottom has legs that screw in to make it a Dj hero stand. So the adventure begins.

What I used so far:
  • DJ Hero Case (dimentions 25″ x 12″ x 5.5″)
  • Small Thin sheet of metal found at most hardware strores, thin enough to cut with tin snips
  • Tin Snips
  • Hand Rivet Gun (cheap one with 4 sizes works great)
  • 16 Rivets Sized 1/8″ X 1/4″
  • 3 Rivets Sized 1/8 X 7/32″
  • Padding

The first thing I did was to throw the legs away and pull out the the pieces that were there to  store the legs in the middle of the case. They are just glued in with a rubber cement . Then I unscewed the the nuts and bolts for the plastic pieces that the legs screwed into. This left 4 holes in the bottom of the case.

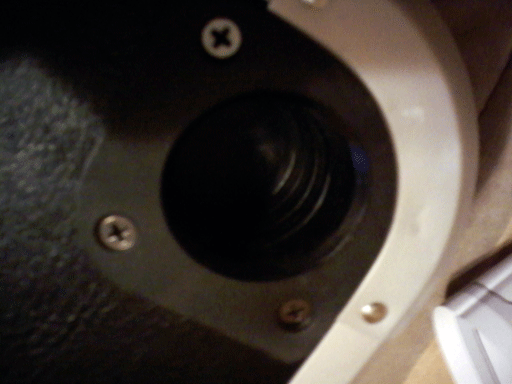

Legs screw into this bracket

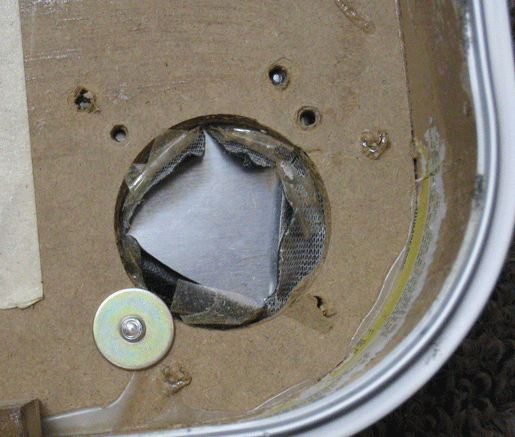

Metal patch and rivets. Notice the one with a washer, It was to fix the blown-out hole

At first I tried to use the exsisting holes that the leg brackets came out of but figured out that it leaves a corner that can’t be riveted since there is a big hole under it. That is when I cut out the rounded squares and used the 1/8″ by 1/4″ rivets. The rivets will not go all the way threw, they will expand and wedge into the hole that you drilled leaving a nice flat surface on the inside. I did have one rivet that blew out the hole, but that was when I tired a larger rivet and I had to use a rivet washer and a longer rivet (1/2″) to go all the way threw to the rivet washer on the inside.

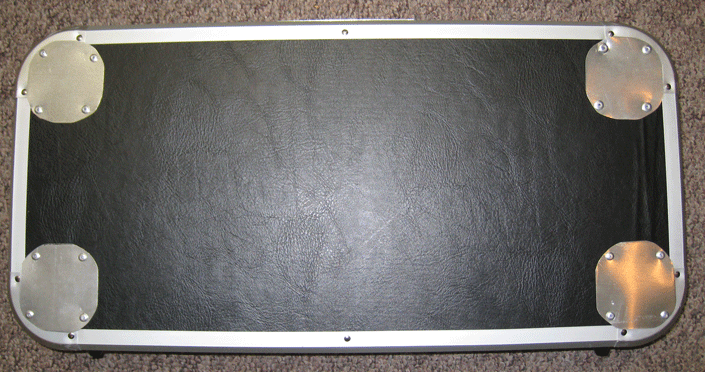

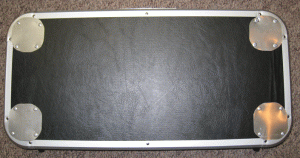

Post Rivet-polooza

After the bottom holes were covered I noticed that some of the rivets for the case had either fallen out or never put in, so I used a few 1/8″ x 7/32″ rivets to secure the corners.

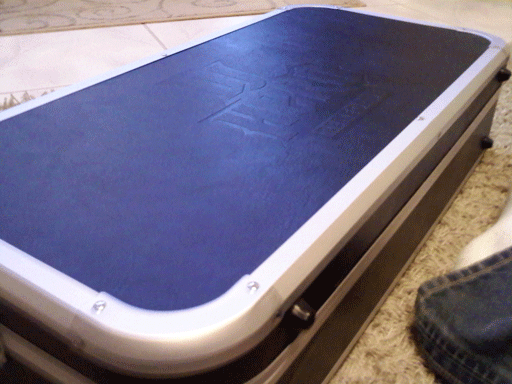

Case closed, Nice feet.

Beyond that I took some foam that I had around and cut it to fit the bottom and used double stick tape to hold it down.

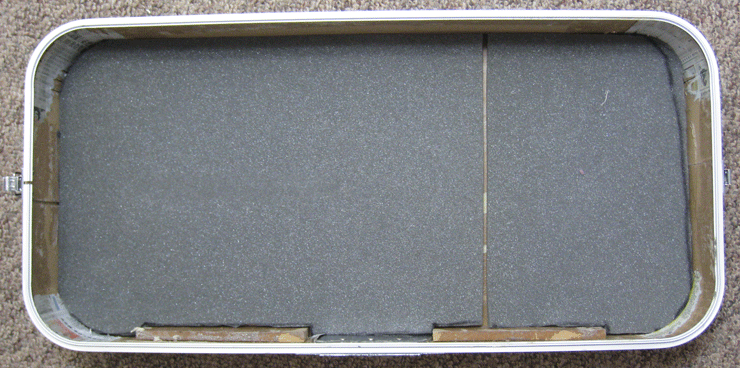

Hollowed case with padding I cut

At this point if I wanted to I could cut foam to make it work for a concert uke, but for now I am leaving it free form. I like the fact that I can use it for a concert or use the padding that came with it and the other pieces to fit 2 small ukes like a Kala Travel soprnao and an Ohana sopranino, and still have room for some music books.

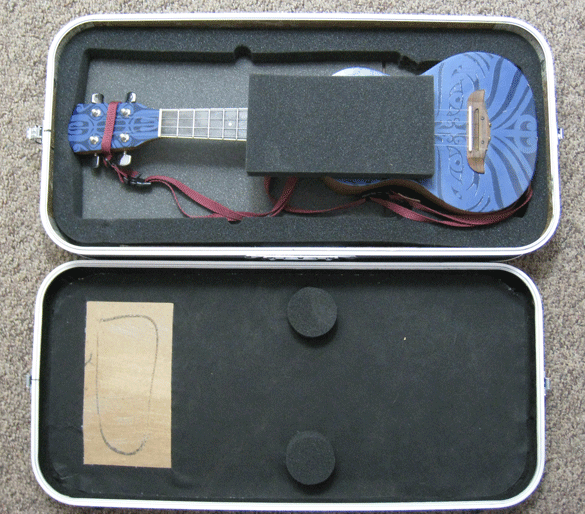

Case with padding that came with the case holding my OU-2 concert

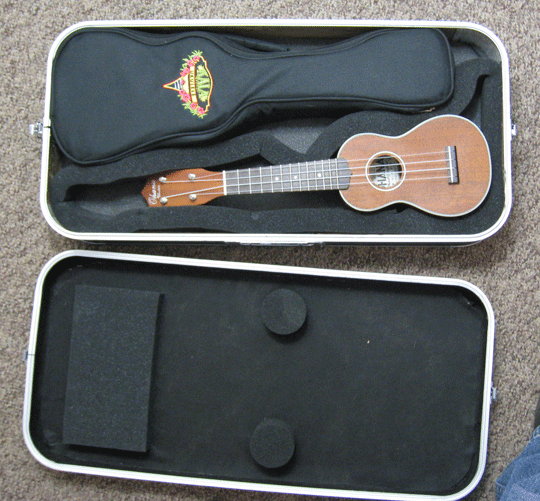

Kala and ohana layer 1

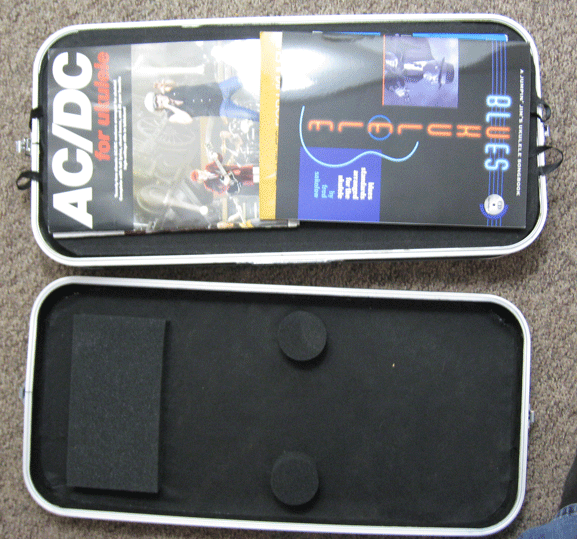

Kala and Ohana layer 2

As of today (Feburary 13, 2011) my Best Buy has 5 cases on the shelf, but none online.
